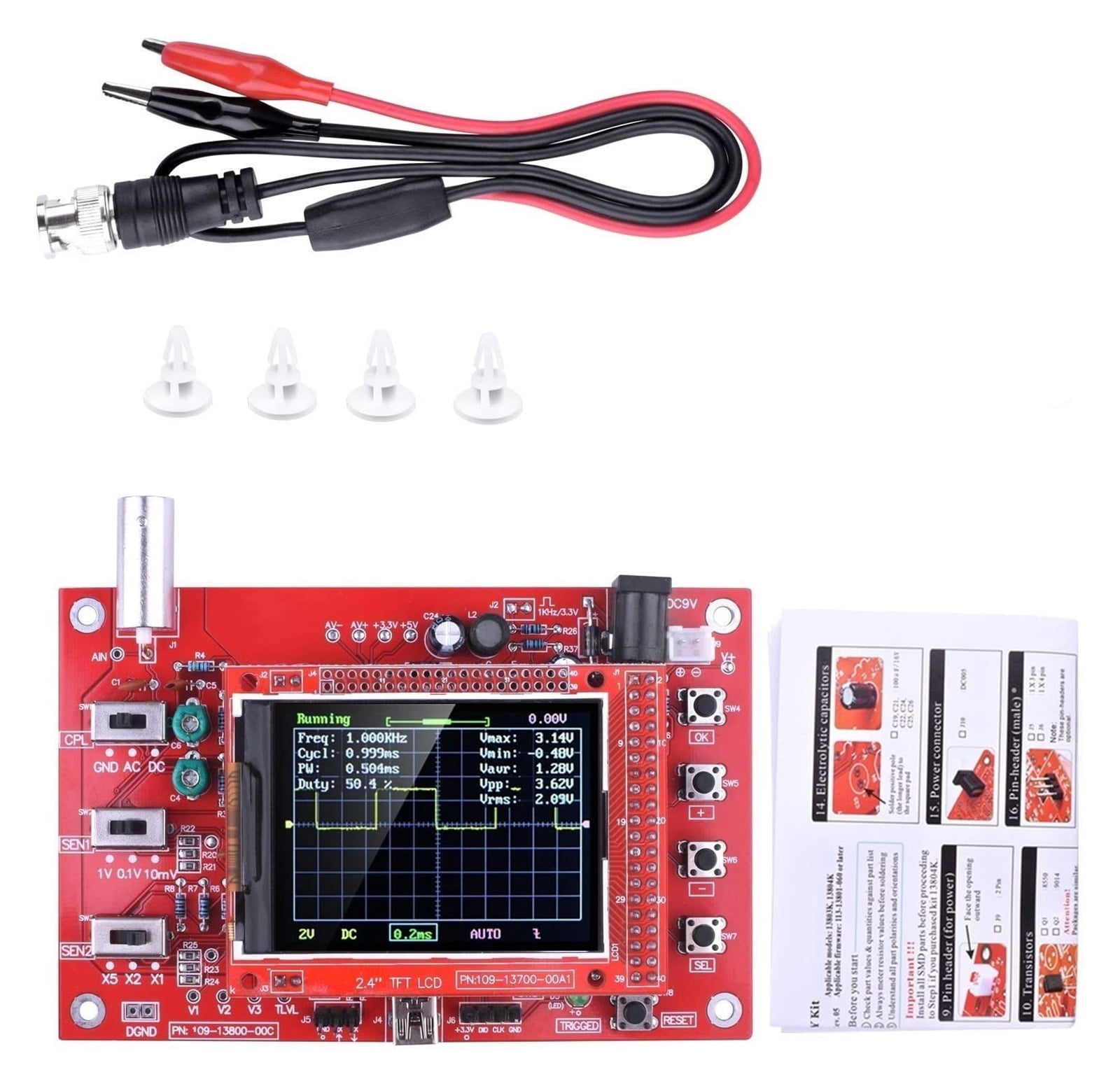

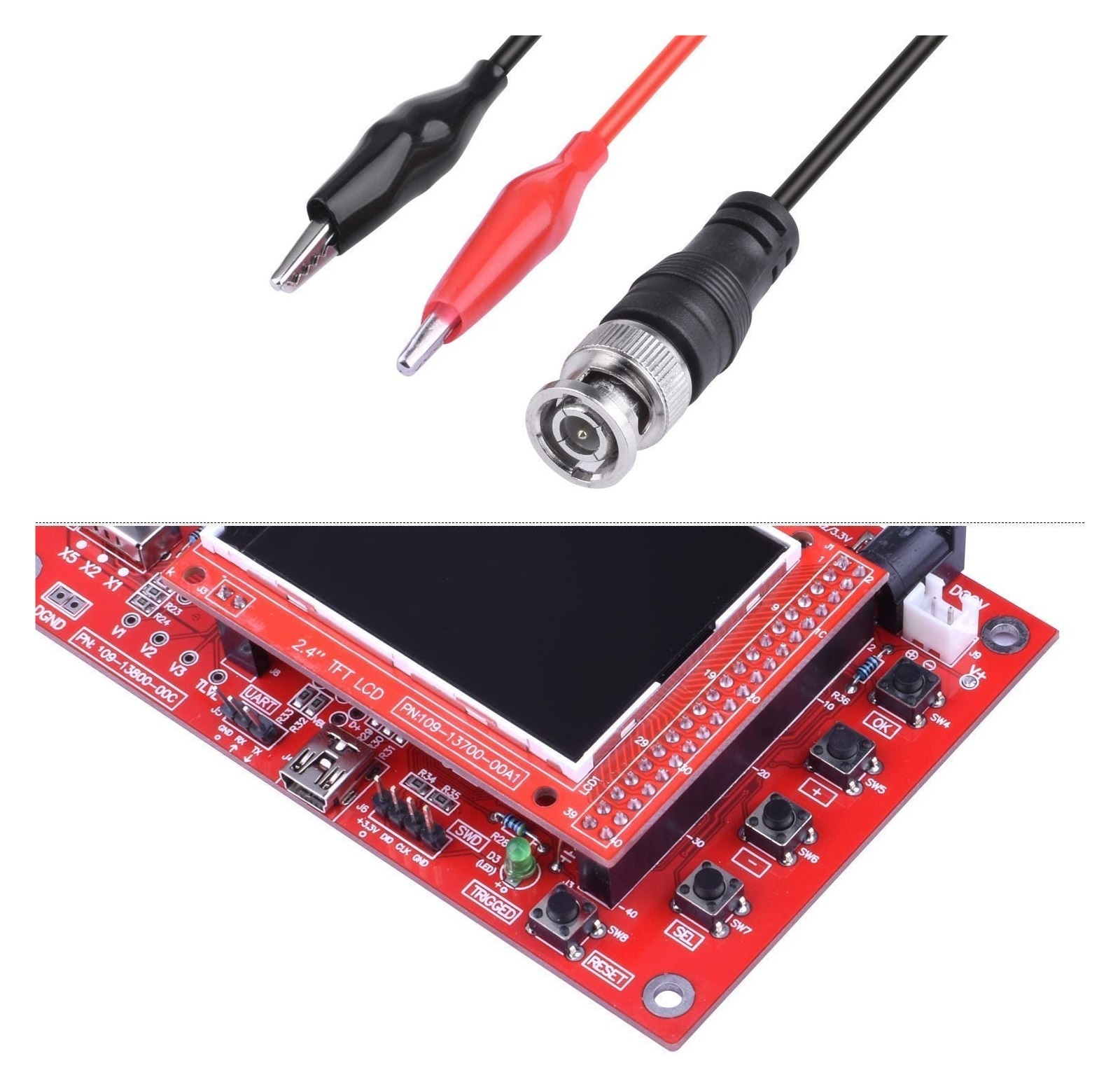

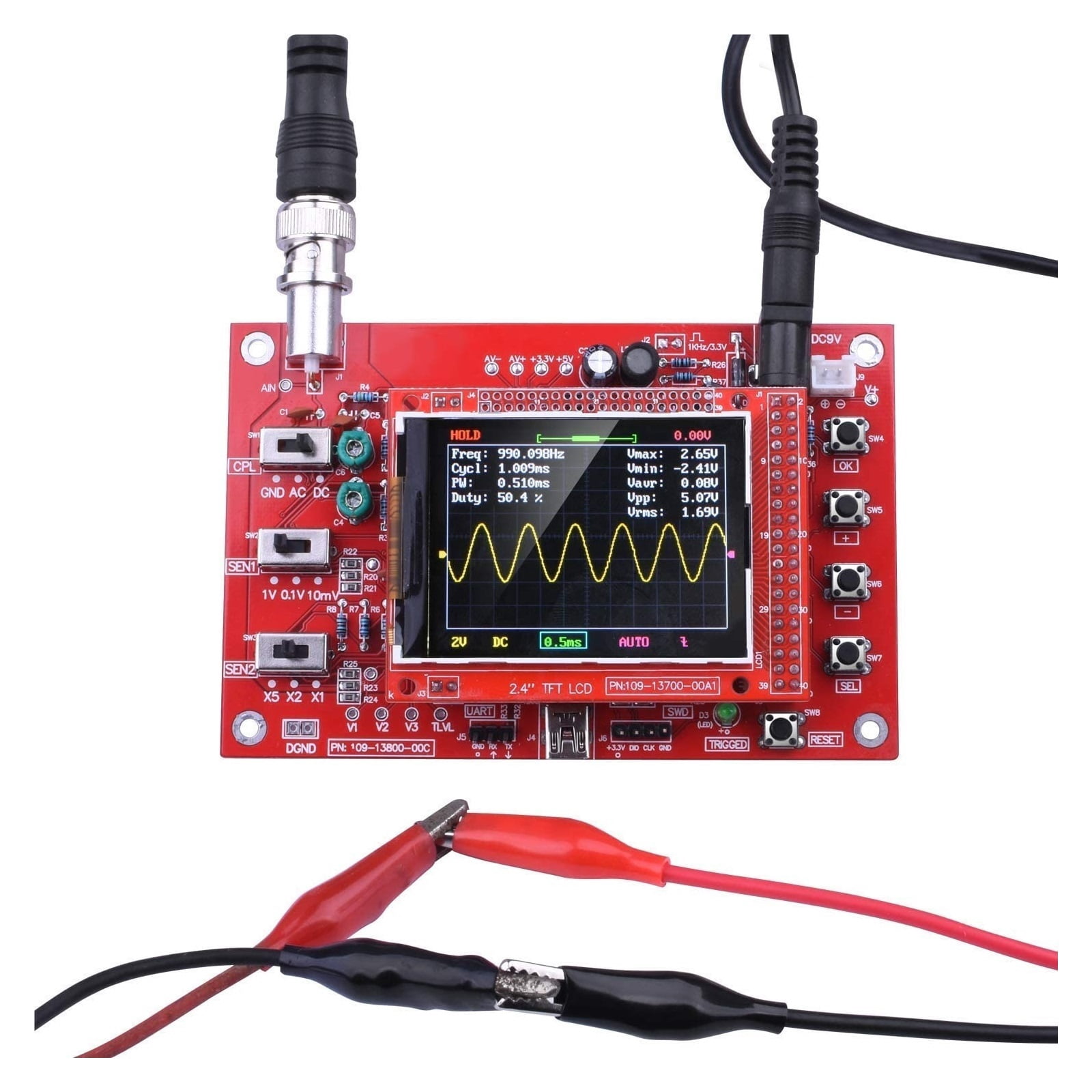

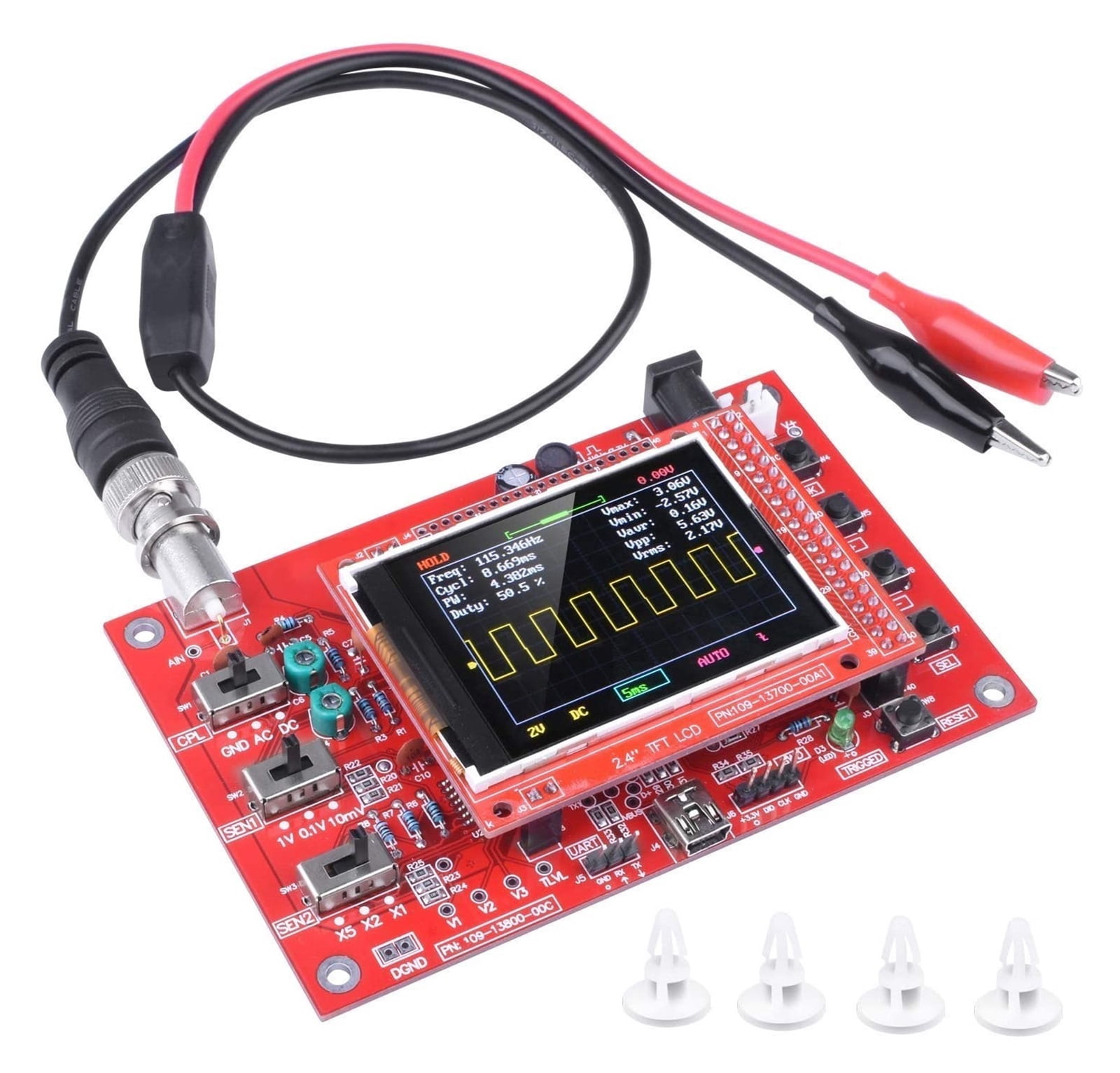

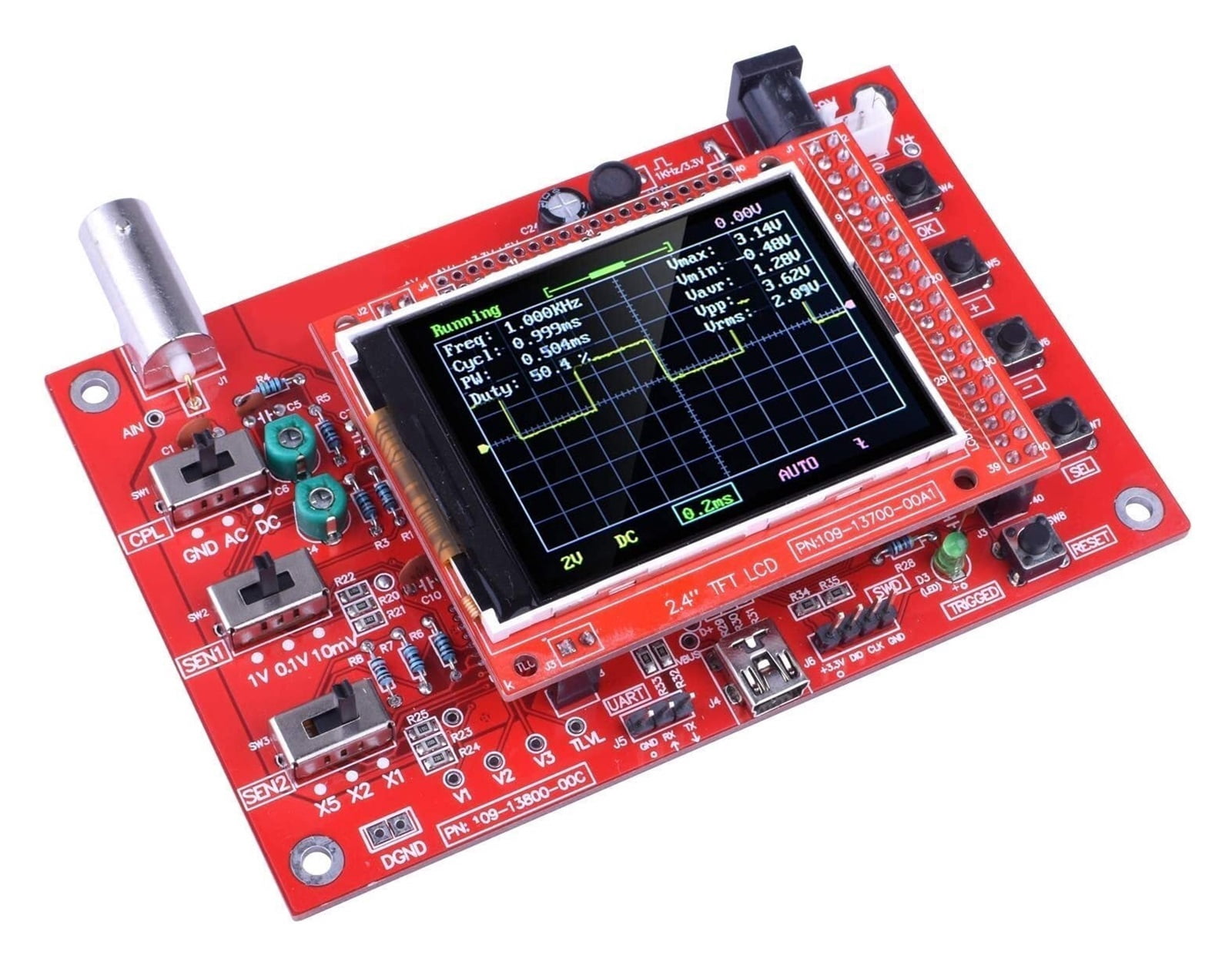

2.4 TFT Pocket Digital Oscilloscope Kit DIY Spare Parts E-Learning Kit 1m/s ,Professional Designed

<p>This DSO38 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. </p><p>It's easy and reliable for circuit operation. It can display frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.</p><p></p><p>Features:</p><p>Observable previous trigger waveform (negative delay).</p><p>Can freeze at any time waveform display (HOLD function).</p><p>Comes 1Hz /3.3V square wave test signal source.</p><p>With waveform parameter digital display, including frequency, periodShort-circuit and open-circuit detection: can help the user find out the soldering error.</p><p>TFT controller recognition function.</p><p></p><p>Specifications:</p><p>Maximum Real-time Sampling Rate: 1Msps</p><p>Accuracy: 12Bit</p><p>Sampling Buffer Depth: 1024 bytes</p><p>Analog Bandwidth: 0-200KHz</p><p>Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)</p><p>Input Impedance: 1M</p><p>Coupling Modes: DC / AC / GND</p><p>The Horizontal Time Base Range: 10s / Div - 50s / Div (1-2-5 progressive manner)</p><p>Supply Voltage: DC 9V</p><p>PCB Size: 117 * 76mm / 4.6 * 3in</p><p>Screen Size: 52 * 40mm / 2 * 1.57in</p><p></p><p>digital oscilloscope diy kit,pocket oscilloscope digital,oscilloscope electronics,kit pocket oscilloscope</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• This kit uses ARM Cortex-M3 processor , and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
• Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
• Adjustable vertical displacement, and with instructions.
• With automatic, regular and one-shot modes, easy to capture the moment waveform.
• Available rising or falling edge trigger.
